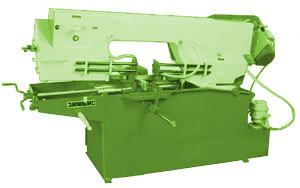

Metal Cutting Horizontal Bandsaw

Special Features:

SPECIAL FEATURES :
  • Less power consumption compared to Hacksaw
  • Continuous Cutting by Means of Circular Endless Blade
  • Smoother & Faster Cutting compared to Hacksaw
  • Easy & Precise Gravity Manual Feed Control
  • Makes Optimum use of the blade due to Rewelding of Blade
  • Special Swing cut Operation to cut larger Section
  • Efficient Self Centering Vice
  • Optional Swivel Vice for 30 /45 /60 Angular Cutting
  • Specially Designed heavy duty Gear box
  • Blade Guide Made of Bearing & Carbide Tips
  • Less Material Wastage due to Lesser Blade Thickness
  • Good Parallelism Compared to Hacksaw Machine.
SPECIFICATIONS
CUTTING CAPACITY
Model   AMI-0 AMI-1 AMI-1 HS AMI-2 AMI-3
Round mm 75 175 175 300 350
Square mm 75 x 75 175 x 175 175 x 175 300 x 300 350 x 350
Rectangular mm 200 x 75 200 x 140 200 x 140 300 x 150 350 x150
DRIVE
Drive motor   0.5 H.P., 1440 RPM 0.5 H.P, 1440 RPM 1.0 H.P., 1440 RPM 2 H.P., 1000 RPM 2 H.P, 1000 RPM
Coolant Pump   0.15 H.P., 440 volts 0.15 H.P, 440 volts 0.15 H.P, 440 volts 0.15 H.P, volts 0.15 H.P, volts
Blade Speed Meter / minute 25 25 20 20 20
30 30 35 35 35
40 40 55 55 55
  75 75 75
CUTTING CAPACITY
Saw Blade - Carbon or Bi-Metal mm 2540 x 20 x 2.9 2540 x 20 x
2.9		 3000 x 27 x 0.9 3810 x 27 x 0.9 4100 x 27 x 0.9
Guide Pulley Diameter mm 340 340 340 496 496
Floor Space
L x W x H		 mm 1500 x 570 x 870 1500 x 570 x 870 1630 x 570 x 870 2400 x 830 x 1050 2550 x 830 x 1050
Net Weight Kg. 272 272 322 761 821
Packed Weight (Approx.) Kg. 381 381 431 831 890
