Automobile Engine Re-Building Machinery

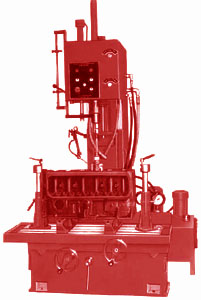

Hydraulic Vertical Honning Machine

Special Features:

SPECIFICATIONS
MAIN FEATURES
Max. honing capacity diameter 200 mm
Max. honing stroke 400 mm
Min. honing stroke 50 mm
Max. distance table to spindle nose 1000 mm
Dist from spindle centre to column 380 mm
Surface of table 1400 x 450 mm
Table traverse 1700 mm
OPERATING SPEEDS
Spindle speeds 50-300 rpm
Infinitely variable
Reciprocating speeds
Infinitely variable 0-16 m/minute
ELECTRIC MOTORS
Motor for spindle stroke 1.5 kw 1400 rpm
Motor for hydraulic motor 1.5 kw 1400 rpm
Coolant pump motor .01 kw 2800 rpm
DIMENSIONS
Length of machine 1300 mm
Width of machine 1150 mm
Height of machine 2150 mm
Nett weight approx. 1500 kg. approx.
Shipping weight approx
Box size : 2000 kg. approx.
For machine 1500 x 1295 x 2490
For hydraulic power pack 840 x 840 x 915
