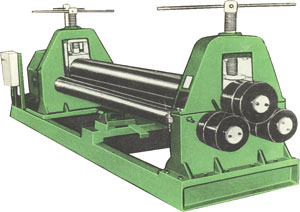

Longitudal Grooves on Bottom rolls for correct Feeding of Plates.
Build in Lubricated Storage.
Circumferencial and Axial Grooves on Gun Metal Bearing for even Lubrication.
Gun Metal Bush Bearings.
Dropend opening system for easy removal of rolled shells.
Minimised feeding height for easy operation.
Well balanced design.
Controlled roll speed for accurate curvature performance.
Indicators provided for correct even top roll presure.
Mechanical device Mechanism for easy sliding of non drive side top roll housing.
Motor of reputed make.
Worm Reduction Gear-Box of reputed make.
Reverse Forward starter with overload thermal relay of reputed make like Siemens/L & T/Cutler Hammer/HKS.
One piece fabricated heavy duty base frame.
UNIQUE SPECIAL DESIGNED OPTIONAL
Extended rolls (To be ordered alongwith machine)
Dies for rolling of angles, channels, pipes, flats, I-beam etc
Attachment for conical rolling.
Extra heavy base frame (for site work)
Direct coupled gear box with electric motor and electromagnetic brake.
Semi automatic centralised lubrication systrm.
Feeding plateform.
Interchangeable extra top roll to roll shells of smallerdiameter
Spilproof re-usable lubrication system.
Manual or pneumatic or mechanical shell ejecting device.
Remote floating control.
Shell support device.
Gun metal nuts for smoother manual rotation.
50% thick plates than the rated capacity can be bent on the machine by hammering action as shown while the thicker plates have to be prebent outside the machine.
Insert the plate between top roll and bottom roll by adjusting the top roll manually.
Apply pressure on the plate by lowering the top roll, then start the main motor in forward direction till one end of plate comes over the first bottom roll. Then stop the main motor and reverse its direction so that other end of the plate will come on second bottom roll.
Repeat the same procedure by applying the pressure from top roll till you get a perfect shell as shown on figure.
For removal of rolled shell reduce the pressure of the top roll, make the shell free between top and bottom rolls, remove tilting end bearing of top roll manually and take out the shell, (Please note that top roll is balancd by means of balancing screw.)
Replace that bearing and the machine is ready for next operation.
SPECIFICATIONS
SR.
MODEL
CAPACITY
DIA.OF TOP ROLL
DIA.OF BOTTOM ROLL
MAIN MOTOR
NO.
MM
MM
MM
HP
1
PY 3-12
1250 x 3
100
90
2
2
PY 6-12
125O x 6
125
105
3
3
PY 10-12
1250 x 10
150
125
5
4
PY 12-12
1250 x 12
175
140
7.5
5
PY 16-12
1250 x 16
190
150
7.5
6
PY 20-12
1250 x 20
200
160
10
7
PY 25-12
1250 x 25
240
200
15
8
PY 3-15
1500 x 3
115
100
3
9
PY 6-15
1500 x 6
140
11 5
5
10
PY 10-15
1500 x 10
160
135
5
11
PY 12-15
1500 x 12
180
150
7.5
12
PY 16-15
1500 x 16
200
160
10
13
PY 20-15
1500 x 15
215
170
12.5
14
PY 25-15
1500 x 25
250
215
20
15
PY 3-20
2000 X 3
130
105
3
16
PY 6-20
2000 X 6
160
135
5
17
PY 10-20
2000 X 10
185
150
7.5
18
PY 12-20
2000 X 12
205
165
10
19
PY 16-20
2000 X 16
220
175
12.5
20
PY 20-20
2000 X 20
230
190
15
21
PY 25-20
2000 X 25
275
230
25
22
PY 30-20
2000 X 30
310
260
30
23
PY 3-25
2500 x 3
150
125
5
24
PY 6-25
2500 x 6
175
150
7.5
25
PY 10-25
2500 x 10
200
170
10
26
PY 12-25
2500 x 12
230
180
15
27
PY 16-25
2500 x 16
240
200
20
28
PY 20-25
2500 x 20
260
215
20
29
PY 25-25
2500 x 25
300
260
30
30
PY 30-35
2500 x 30
330
280
40
31
PY 36-25
2500 x 36
345
300
50
32
PY 42-25
2500 x 42
400
350
50
33
PY 50-25
2500 x 50
425
375
60
34
PY 3-30
3000 x 3
175
150
7.5
35
PY.6-30
3000 x 6
200
170
10
36
PY 10-30
3000 x 10
240
200
15
37
PY 12-30
3000 x 12
260
220
20
38
PY 16-30
3000 x 16
275
225
20
39
PY 20-30
3000 x 20
290
220
25
40
PY 25-30
3000 x 25
330
280
40
41
PY 30-30
3000 x 30
360
330
40
42
PY 36-30
3000 x 36
385
340
50
43
PY 42-30
3000 x 42
430
380
50
Standard Accessories :
Suitable electric mbtor 3 phase 440 volts for AC supply with motor attachment, complete fittings with switch/ starter &
