Modular Furniture Processing Machines

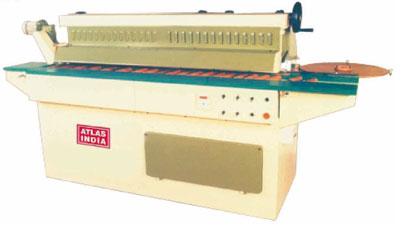

Through Feed Edge Banding Machine

Special Features:

SPECIFICATIONS
Model NS-246TF
Working Thickness 12 - 50 mm
Working Width (minimum) 100mm
Workpiece Length (minimum) 300 mm
Feed Speed 6m / min
Tape Thickness 0.5 - 2 mm
Extraction Diameter 100 mm
Trimming Motor Power .25 hp / 6000 rpm
Buffing Motor Power .5 hp / 1400 rpm
End Cutting Motor Power 25 hp / 6000 rpm
Working Height 980 mm
Electric Connection 5 Kw
Pneumatic Connection 7 bar
Machine Dimensions (I x w x h) 2900 x 900 x 1500 mm
