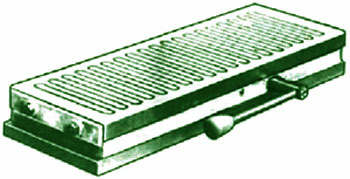

Permanent Magnetic Chuck

Special Features:

These Chucks have Two Operating Handle,one at lett and other at Right end.

SPECIFICATIONS

MODEL NO.		SIZE OF CHUCK	PW	PG	PP	POLE	EFFECTIVE AREA
*	PMK 0510	125 x 250 mm	20	12	32	7	212 x 100 mm
	PMK 0610	150 x 250 mm	20	12	32	7	223 x 122 mm
*	PMK0612	150 x 300 mm	20	12	32	9	257 x 122 mm
	PMK 0812	200 x 300 mm	20	14	34	9	257 x 162 mm
	PMK 0614	150 x 350 mm	20	12	32	11	318 x 122 mm
	PMK 0814	200 x 350 mm	22	14	36	10	389 x 166 mm
	PMK 0616	150 x 400 mm	20	12	32	12	348 x 122 mm
*	PMK 0618	150 x 450 mm	20	12	32	14	406 x 122 mm
	PMK 0818	200 x 450 mm	22	14	36	11	410 x 166 mm
	PMK 0820	200 x 500 mm	22	14	36	12	410 x 166 mm
*	PMK 0824	200 x 600 mm	22	14	36	15	498 x 166 mm
	PMK 1018	250 x 450 mm	22	14	36	10	346 x 200 mm
	PMK 1218	300 x 450 mm	22	14	36	10	346 x 250 mm
	PMK 1024	250 x 600 mm	22	14	36	14	490 x 200 mm
	PMK 1224	300 x 600 mm	22	14	36	14	490 x 250 mm
	PMK 1030	250 x 750 mm	22	14	36	14	490 x 250 mm
	PMK 1230	300 x 750 mm	22	14	36	18	634 x 250 mm
*	PMK 1236	300 x 900 mm	22	14	36	22	778 x 250 mm
*	PMK 1240	300 x 1000 mm	22	14	36	24	850 x 250 mm
