Automobile Engine Re-Building Machinery

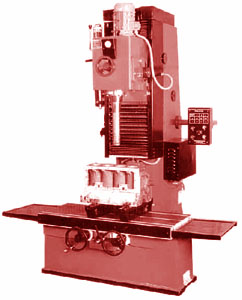

Vertical Fine Boring Machine
Special Features:
Vertical Fine Boring Machine is specially designed for fine and accurate machining of cylinder bores. Manufacturers ensures years of trouble free operation as every phase of manufacturer is under strict quality control. Base and column are of high grade casting. Boring head travels on a Hardened & Grounded finished guide ways column protected with bellows. Boring head is fitted with hardened alloy gears to give smooth feed and side on column. Controls are provided on one side of the machine on a comfortable position and easy operation.
The Machine is supplied with the following standard equipment :
- Boring tool setting device complete with micrometer.
- Two tool holders for boring.
- Portable Grinder with suitable Grinding/Lapping Wheels.
- Two Block Jacks.
- Two Sets of Parallel Blocks.
- Service Spanners.
- One spindle fitted with the Machine, bore dia capacity 64-135 mm.
| BORING SPINDLE | TOOL HOLDER | CAPACITY |
| BS-46 | TH 4670 | ø 46-70 mm |
| BS-65 | TH 6590 | ø 65-90 mm |
| TH 8535 | ø 85-135 mm | |
| BS-80 | TH 8014 | ø 80-140 mm |
| TH 1420 | ø 140-200 mm | |
| TH 2025 | ø 200-250 mm |
| SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
