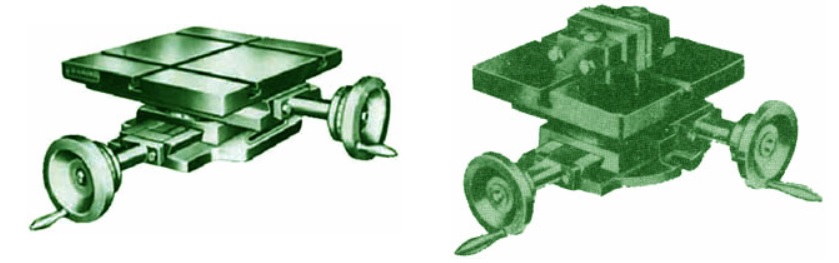

Compound Sliding Table

Special Features:

SPECIFICATIONS
Code No. 707 707 A 707 A 707 A 707 A 707 T 708 708 J 708 (single) 732
Size In inches 12 x 8 12 x 12 12 x 20 16 x 16 12 x 12 8 x 8 8 x 8 6 x 6 8 x 8 12 x 6
Table size in mm 300 x 200 300 x 300 300 x 500 405 x 405 300 x 300 200 x 200 200 x 200 150 x 150 200 x 200 300 x 150
Height overall (in mm) 140 165 165 140 170115 115 65 110
Length Overall (in mm) 510 510 750 645 510 350 350 350 350 355
T.SIol size (in mm) 14 14 14 14 14 10 10 10 10 13
Travel Bolhways (in mm) 200 200 300 x 400 300 200 125 125 125 125 200 x 115
Width of Jaws (in mm) - - - - - 85 - - One way -
Depth of Jaws (in mm) - - - - - 35 - - - -
Wheels gradualion .001 .002* .002 .002 .002 .002 .002 . .001 .001 .001 .001
Approx. weight(in Kgs.) 36 44 96 115 44 21 19 17.5 12 18
