Milling Machine

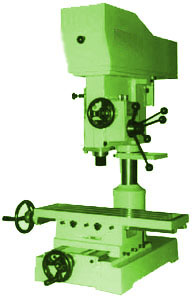

Vertical Miller & Drilling

Special Features:

SPECIFICATIONS
Suitable for drilling upto 32 mm
Quill movement 115
Taper socket in spindle Morse No. 3
No. of spindle speeds 8
Range of spindle speeds in RPM 102, 204, 340, 450, 680, 900, 1450, 2900
2-Speed electric motor 0.75/1.0 HP  1440-2800 RPM
Distance, centre of spindle to column face 260
Distance, centre of spindle to bearing housing column 235
Maximum distance spindle nose to table surface 500
Traverse of table without automatic feed 390
Working surface of the table 560 x 250
Traverse of table with automatic feed 365
Cross traverse of table 165
Automatic table feeds 6, 20 to 315 mm per minute
Net weight 450 Kg. without auto feed 500 Kg. with auto feed
Gross weight 550 Kg.  without auto feed 600 Kg. with auto feed
Shipping dimensions: Length 950       without auto feed 1200    with auto feed
Width 900       without auto feed 900      with auto feed
Height 1630      without auto feed 1630     with auto feed
