Ducting Machinery

Special Features:

Shearing Machines have been designed and developed through structural analysis techinique for continuous production, accuracy and repeatability having the following main features :

• Frame : Rigid steel frame of shears are optimally designed to avoid week sections at load support and is of interlocked design. The ram is guided throughout its length by accurate machined guideways ensuring proper clearance and clean cut.


• Hold-down system : Spring loaded mechanical Hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cuts. Holddown units are provided with oversize pads to avoid impressions on sheet metal on request.


• Hold-down system : Hydraulic Hold down pads are accuated calm operated pump. Hydraulic Hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cut. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request at extra cost.


• Knives : Shears are provided with high quality single segment (HcHcr) Knives for longer tool lite. Ease in assembling of knife reduces down-time. The knife blades are four edged.


• Lubrication: All bearing parts and guide surfaces are lubricated through hand-operated lubrication system.


• Mechanical backguage: This is standard equipment provided on all shears. Scale on backguage gives instantaneous reading of distance between shear and backguage. Thus avoiding errors and maintenance encounted electronic equipment.


• Finger guard: Fitted in front of hold-down for operator protection without abstructing viewing.

Power Supply : 440 Volts/ 360 Volts / 220 Volts, 3 phase, 50 cycles / 60 cycles.

Standard Aceessories : Back Gauge, front gauge with stand, wheel and gear guards, motor pulley, suitable electric motor, 3 phase, 440 volts, starter, V-belts, and One no, Shearing blade (fitted with machine) Manual Lubrication System.)

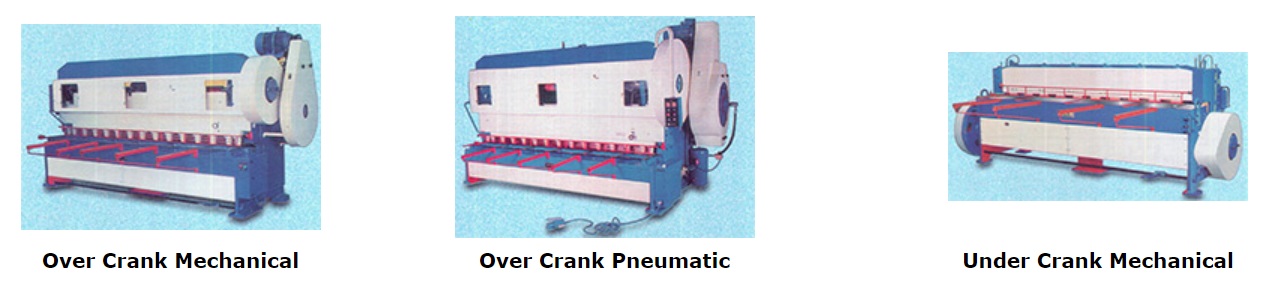

Specification For Undercrank Drive Shearing Machines

Specifications For Overcrank Drive Shearing Machines (Hydraulic Hold Down System)
