Milling Machine

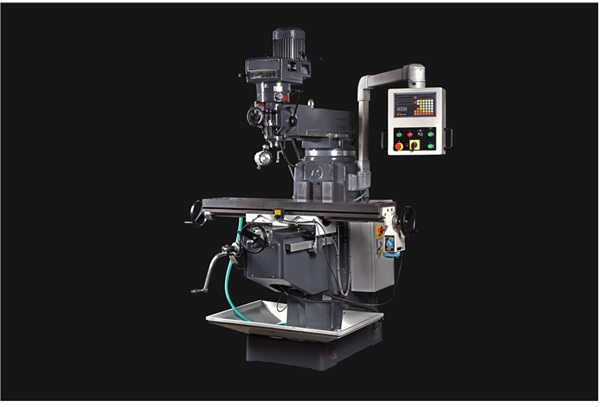

Universal Rocker Milling Machine SD6
Special Features:
TECHNICAL DATA:
|
DESCIPTION |
SD6 |
|
Workbench area |
305x1370 (12x54) |
|
X axis (mm) |
820 |
|
Y axis (mm) |
385 |
|
Z axis (mm) |
500 |
|
Y axis (mm) |
Double Swallowtail ▲▲ |
|
Z axis (mm) |
Square â– |
|
Spindle taper (mm) |
Vertical steel head R8 / (NT30) NT40 |
|
Spindle travel (mm) |
127 |
|
Spindle speed |
16 speeds (steps) |
|
Spindle feed (mm / rev) |
0.076 / 0.003 0.038 / 0.0015 0.203 / 0.008 |
|
Spindle low speed (rpm) |
66, 110, 175, 270, 550, 930, 1460, 2270 |
|
Spindle speed (rpm) |
132, 220, 350, 540, 1100, 1860, 2920, 4540 |
|
Number of slots * width (mm) |
3x16 |
|
T slot number spacing (mm) |
65 |
|
Voltage (v) |
380/415 |
|
Frequency (hz) |
50 |
|
Machine head motor |
3HP / 5HP |
|
Cooling motor |
1 / 8HP / 90W |
|
Lifting motor |
1 / 2HP / 400W |
|
Maximum working weight (kg) |
350 |
|
Saddle width x length (mm) |
305X550 |
|
Ram travel (mm) |
510 |
|
Sleeve diameter (mm) |
Φ85.70 |
|
Minimum distance from spindle center to fuselage (mm) |
220 |
|
Maximum distance from spindle center to fuselage (mm) |
590 |
|
Minimum distance from spindle end to table surface (mm) |
90 |
|
Maximum distance from spindle end to table surface (mm) |
590 |
|
Machine dimensions (length x width x height) mm |
1800x1680x2280 |
|
Net weight (kg) |
1480 |
