Automobile Engine Re-Building Machinery

Special Features:

• High positioning accuracy with morse
• High positioning accuracy with linear guideway and ball screw
• Twin cutter to make sure cutting two sides of Brake Disc at the same time high parallelism of the work piece.
• Stepping motor, good control performance, easy to adjust speed.

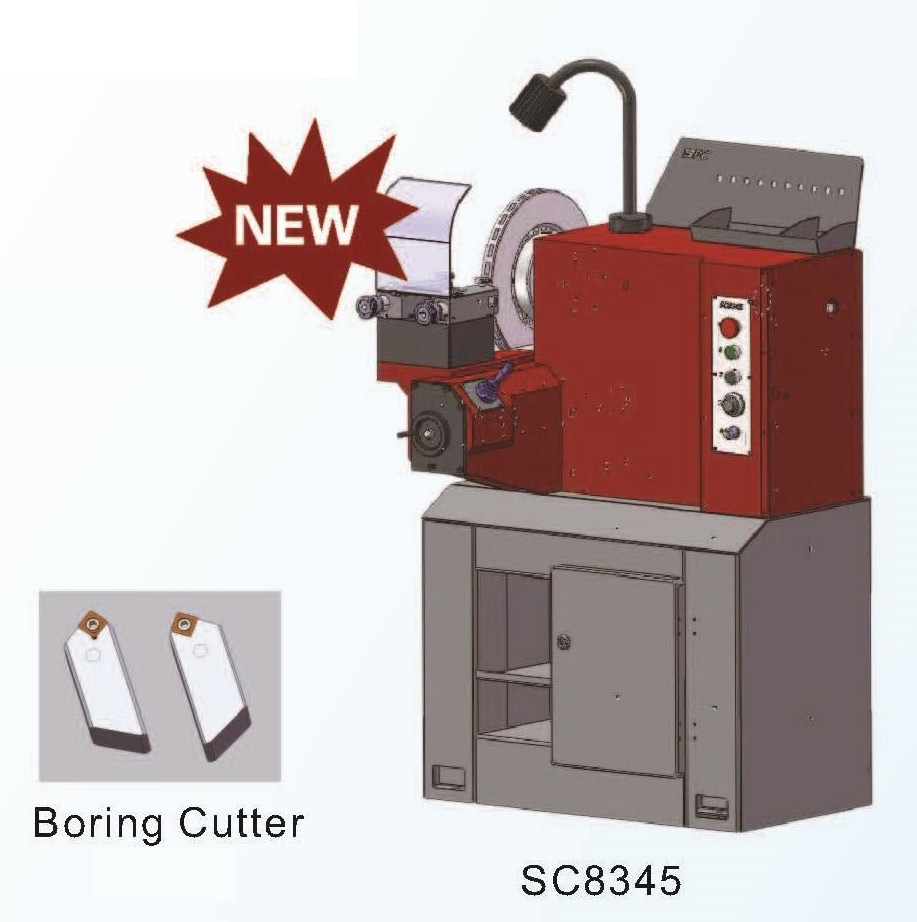

     MODEL:                                      SC8345

     SPECIFICATIONS:

     Disc. Dia. Capacity:                  150 to 450 mm

      Disc Thickness:                         15 to45 mm

      Spindle Speed:                          120/min.

      Feeding Speed:                         0.200mm (stepless speed)

      Main Motor:                             750 W

       Feeding Motor:                        stepping motor
