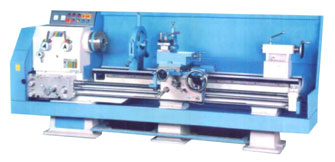

Lathe Machines

Centre height 267 mm / 300mm

Main Spindle
Type of spindle nose     : A2-6
Spindle nose taper        : MT-6
Spindle adaptor morse   : MT-4
Taper spindle speeds     :12 [30, 43, 55, 85, 115, 160, 210, 285, 400, 545, 785, 1060RPM]} Centre height 267mm
Taper spindle speeds    : 12 [20, 28, 38, 55, 75, 105, 140,} 190,265,365,525,705RMP} Centre height 300mm
Spindle mounting on     : Taper rotter bearings

Tail Stock Spindle
Diamter  : 6:3mm/Travel:180mm/Morse Taper:MT-4
Landing Screw Dia/threads : 38mm/4TPI

Threads
Nos. of threads Range
For fully matric      : 17/0.5mm to 15mm/pitch
Nortor gear box inch    : 40/2 to 60TPI

Feeds
Nos of feeds /range
For fully longitudinal    : 40/0,066 to 2mm/rev ,of spindle
Norton gear box cross : 40/0,0165 to 5mm/rev ,of spindle

Center heighte 400mm

Main Spindle
Type Of Spindle nose   : Threated  TPI
Spindle nose taper       : MT-5
Spindle adaptor morse  : MT-5
Spindle speeds            : 9 nos
RPM/Range                 : 30-720 RPM
Spindle mounting on     : Taper rotter bearings 32224 and 32222 ZKL Make

Tail Stock Spindle
Diameter   : 80mm dia
Lending screw dia threade : 500mm TPI

Feeds
Nos of feeds
Range for fully longitudinal  : 30 nos
Range of longitudinal  feed  : 0.05 -28mm
Range of Transverse Feed   : 0.025-1_4mm

Standard Accessories : Face plate, carrier plate spiash guard steady rest,follow rest coolant system with littings, electrical,motor panel  bored ,wiring push button switches ,v belts and tittings ,Electrical switch shift and chip guard, 4 jaws dog chuck with chuck plate ,3jaws true chuck with chuck plate centre adaptor  Dead centres [MT4] 2 nos, Tool  post spanner motor pulley Thread  dial indicator change gear set 1
{for metric and inch both}

Extra Accessories : Tapper  turing Attachment, quick change tool post  Rear tool post  DRO units food break recving centre  machine lamp
