Milling Machine

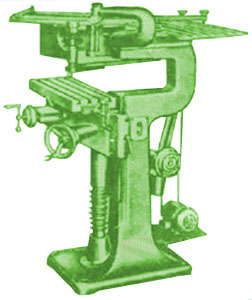

Universal Engraving Cum Milling Machine

Special Features:

SPECIAL EXTRA ACCESSORIES :

  1. Rough Milling attachment
  2. Single Lip Tool Grinder Model MTG-1
  3. Indexing workholder
  4. Electric Acting Attachment
  5. Roll Engraving Attachment
  6. Machine vice with seivel base width of 100 mm jaws
  7. Rotary table 200 mm
  8. Template set A to Z and 0 to 9 height of 20 mm (set of 107 numbers)
  9. Machine lamp
  10. Dove Tail Strip for Template
  11. Auxilary Table

STANDARD ACCESSORIES :

  • Electric equipment suitable for 3 phase, 415 Volts, 50 cycles, A C supply.
  • Set of servicing Tools
  • Two clamps for Workholder
  • Two clamps for copyholder
  • One spring collet for cutter spindle
  • One collet for tracing stylus
  • One set of 6 numhers stylus



SPECIFICATIONS
Drive Motor 1/2 B.H.P. 2800 R.P.M. Cord drive
Spindle
Spindle speed range 1800 to 15000 R.P.M.
Spindle fine adjustment 1/8" (3 mm)
Spindle coarse adjustment 1/4" (6.25 mm)
Spindle collet taper 10°
Pantograph
Pantograph arm largest 1 : 1
smallest 1 :50
Work Table
Longitudinal Travel 12" (300 mm)
Main slide cross travel 6" (150 mm)
Work table clamping area 12" x 6" (300 x 150 mm)
Work table up and down 10" (250 mm)
Copy Holder Table
Copy holder table clamping area 18" x 10" (450 x 250 mm)
Max. Height between copy holder and pantograph arm 3/4" (20 mm)
Weight 350 K.G. approximately.
