Planning & Plano-miller Machines

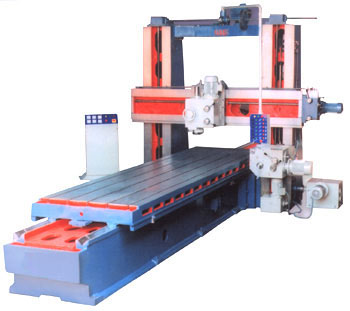

Planomiller Machine

Special Features:

SPECIFICATIONS
MODEL 7.5 HP 10 H.P. 15 H.P. 20 H.P.
Spindle Nose ISO 50 ISO 50 ISO 50 ISO 50
Spindle Speeds 6 8 8 12
Speed Range 45-300 RPM 45-400 RPM 45-400 RPM 20-450 RPM
Drill Stroke 100 mm 125 mm 150 mm 180 mm
Spindle Dia 85 mm 95 mm 110 mm 125 mm
SPECIFICATIONS OF PUNJSTEEL PLANO MILLING MACHINES
PARTICULARS MODEL
Specifications AY-1 AY-2 BY-1 BY-2 DY-1 DY-2
Table Stroke Meters 1.8 2.4 3.6 4.8 5.4 6
Planning Width mm 1200 120 C 1500 1500 1800 1800
(can be up to 1500) (can be up to 2100) (can be up to 2400)
Planning Height under Cross Rail mm 1200 1200 1500 1500 1800-2400 1800-2400
(can be up to 1500) (can be up to 2100)
Length of Bed mm 2700 3600 5400 7500 8400 9300
Height of Bed mm 600 600 650 650 700 700
Centre to Centre Width of Bed mm 650 650 700 700 800 800
  (can be up to 700) (can be up to 800) (can be up to 950)
Width of Table mm 975 975 1050 1050 1200 1200
  (can be up to 1050) (can be up to 1200) (can be up to 1750)
Thickness of Table mm 175 175 225 225 250 250
Face of Pillar mm 300 300 350 350 400 400
Face of Cross Rail mm 400 400 500 500 600
Speed Cutting & Return as Planner mts/mm 15/23 15/23 15/23 15/23 13/19 13/19
Table Feed Range as Piano Miller mm/min. (Twenty Five to Two Hundred Fifty)
Driving Unit mm (Screw Nut Drive) (Worm and Half Nut Type Rack)
Approx Weight tons 12 14 22 26 40 45
