Universal Gear Hobbing Machines
Universal Gear Hobing Machine
Special Features:
Salient Features :
Gear Hobbing Machine model V-300 is designed for the production of precision Spur, Helical, Worm Gears, Splines, Sprockets, Rachet Wheels & any other form that can be hobbed. Its bed & column are of close grain casting & are well ribbed with V-type guideways. The shafts & Gears are made of alloy steels. The indexing worm wheel is of high grade Bronze material. The machine is equipped with Differential Mechanism for cutting helical gears. Provision has been made to remove backlash between the indexing worm & worm gear and also between feed screw & the nut of the hob slide. Oil reservoirs are provided in the machine which ensures thorough lubrication of gears & bearings.
STANDARD EQUIPMENTS :
One Electric Motor 2 H.P. (960 RPM), One Electric motor 1 H.P. (1440 RPM), One Electric Coolant Pump, One work arbour, One Hob arbour, One set of 45 change gears,One set of spanners.
| SPECIFICATIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Salient Features :

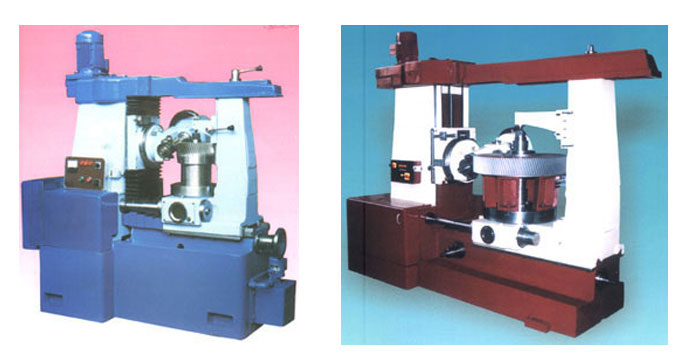

The heavy duty Universal Gear Hobbing Machines Model V-1000 & Model V-1500 represent the ultimate in sound uptodate design. These are of precision construction with superior workmanship which ensures high output and fine performance. The machine can cut Spur Gears, Helical Gears, Worm Gears, Splines, Serration sprocket Wheels, Retchet Wheels and any other form that can be hobbed. The bed and main column of the machines are of ample size. These are of box type design and are well ribbed with V-type guideways. For the consistence accuracy of the machine axially adjustable Indexing worm is provided to remove backlash. Provision has also been made to remove backlash in feed screw and nut of the Hob slide. Oil reservoirs are provided in the machine which ensures thorough lubrication of Gears & Bearings.
Standard Equipment :
One main electric Motor, One rapid electric motor, One electric coolant Pump, One Work Arbour, One Hob Arbour, One set of 48 change Gears, Six segment supports (One Face Plate 54" dia. and One V-Belt Pulley 31 dia. for V-1500 only)
| SPECIFICATIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
