Grinding Machines

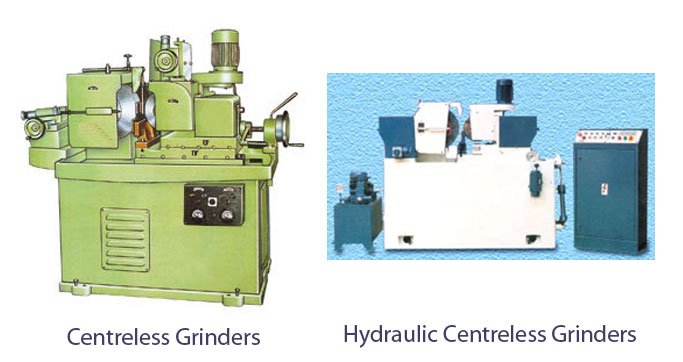

Centreless Grinders

Special Features:

SPECIFICATIONS
MODEL AMI- 1 AMI- 2 AMI- 3
Maximum Grinding Diameter 75 mm 75 mm 125 mm
Minimum Grinding Diameter Min. 1 mm 1.5 mm
Maxi. included angle for taperwork (Without using forming attachment) 5 deg. 5 deg. 5 deg.
Speed of grinding wheel R. P M. 1600 1800 1250
Number of speeds of Control wheel 3 3 3
Diameter of grinding wheel 350 mm 350 mm 350 mm
Maximum Width of grinding wheel 100 mm 100 mm 150 mm
Diameter of hole in grinding wheel 125 mm 150 mm 300 mm
Diameter of control wheel 230 mm 230 mm 300 mm
Maximum width of control wheel 100 mm 100 mm 150 mm
Diameter of hole in grinding wheel 75 mm 75 mm 125 mm
H.P. of motor for wheel head 5 H. P. 7.5 H. P. 15 H. P .
H.P. of motor for control wheel 3/4 H.P. 10 H. P. 2 H. P.
Speed of motors RPM 1440 1440 1440
Floore space for machine 30" X 40" 30" X 40" 43" X 65"
Approximate weight 1600 Kgs. 1650 Kgs. 2600 Kgs.



STANDARD ACCESSORIES :

  • One Grinding Wheel
  • One Regulating Wheel
  • Two Truing Devices
  • Coolant Pump with Tank
  • Grinding Wheel Puller
  • Grinding Wheel Pulley Pulle
  • Grinding Wheel & Regulating Wheel Nut Spanner
  • Work Rest Blade for Through Grinding
  • Splash Guards
  • Allen Keys and Spanners Set
  • Hand Pump Lubrication for slides
  • Machine Lam

OPTIONAL ACCESSORIES :

  • Wheel Balancing Stand with Arbour
  • Additional Wheel Flange
  • Additional Work Rest Blade
  • Magnetic Coolant Separator
  • AC variable speed Motor for Regulating Wheel
  • Gearless Hydraulic Motor for Regulating Wheel
  • Auto InfeedGrinding
  • Auto Ejector/Lifter for infeedgrinding
  • BimetalicBush Bearing for Grinding Wheel Head
  • Bar Feeder for long Bars Grinding
  • Vibratory Feeder
  • Automatic Feeder for through-feed Grinding
  • Anti-Vibration Pads
  • Automatic Balancing of Grinding Wheel



SPECIFICATIONS
MODEL   AMI-H 75 AMI-H 100 AMI-H 150
Grinding Capacity
Diameter Min. 1 mm 1.5 mm 5 mm
  Max. 75 mm 75 mm 1.50 mm
Grinding Wheel
Diameter   350 mm 350 mm 500 mm
Width   100 mm 100 mm 200 mm
Bore   152 mm 125 mm 300 mm
Speed Min. 1800 R.P.M. 1800 R.P.M. 1400 R.P.M.
  Max. 2000 R.P.M. 2000 R.P.M.
Regulating Wheel
Diameter   225 mm 225 mm 300 mm
Width   100 mm 100 mm 200 mm
Bore   76 mm 75 mm 125 mm
Speed Min. 20 R.P.M. 20 R.P.M. 10 R.P.M.
  Max. 100 R.P.M. 100 R.P.M. 120 R.P.M.
Power requirements
Grinding Wheel Motor (KW/HP) 5.5/7.5 5.5/7.5 20 HP
Regulating Wheel Motor (KW/HP) 0.75/1.0 0.55/0.75 2 HP
Hydraulic Unit Motor (KW/HP) 0.75/1.0 0.55/0.75 1 HP
Coolant Pump Motor (KW/HP) 0.12/0.16 0.07/0.1 0.5 HP
Lubrication Pump (KW/HP) 0.18/0.25 — 0.25 HP

Dimensions & Weight
Length   1620 mm 1620 mm 2200 mm
Width   860 mm 1070 mm 1200 mm
Height   1430 mm 1500 mm 1650 mm
Net Weight Approx.   1500 Kgs. 1370 Kgs. 3000 Kgs.
